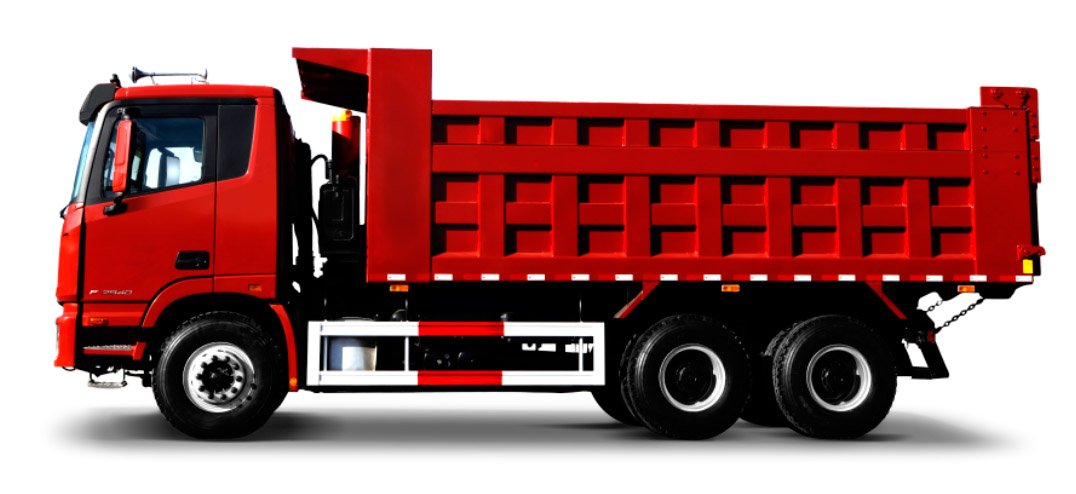

| Model | BJ3259DLPKE-XD | |
| Drive type | 6X4 | |
| Wheel base(mm) | 4100+1350 | |
| Overall dimension(mm) | 8600X2495X3580 | |
| Curb weight(Kg) | 12280 | |
| Load capacity(Kg) | 30000 | |
| Cabin | Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C | |
| Engine | Model | WP10.336E55 |
| Max.output (kw/HP) | 247/336 | |
| Max.torque (N•m) | 1550@1200-1500RPM | |
| Displacement (ml) | 9726 | |
| Emission standard | Euro V | |
| Description | In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure ,common rail diesel engine. | |
| Gear box | 12JSD200T,manual,12 forward ＆2 reverse gears | |
| Driving axle | Load capacity 18000Kg | |
| Front axle | Steering axle,load capacity 7000Kg | |
| Quantity of leaf spring | 10/12 | |
| Inner trimming | ||
| Standard configuration | Air suspension seat | |
| Seat heater | ||
| Lumbar support to the driver | ||
| Adjustable steering wheel | ||
| Electrical system | ||
| Standard configuration | CAN bus intellectual electronic control system | |
| New battery box | ||
| Start/stop device under the vehicle | ||
| Safety | ||
| Standard
configuration |
Three points safety belt | |
| Automatic clearance adjustment arm,tachometer | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | Spring energy, compressed air operating on rear wheels | |
| ABS | Provided | |
| Comfortable accessories | ||
| Cab four points full floating suspension | Front and rear coil spring | |
| Standard configuration | Cab anti-rolling stabilizing device | |
| Hand accelerator | ||
| Electric window | Provided | |
| Chassis | ||
| Standard configuration | Big tool box | |
| Reinforced rim (with HQ mark) | ||
| Three in one lock (Ignition switch, door and fuel tank) | ||
| Type specification | 12.00R20 16PR | |
| Number of tyres | 10+1 | |
| Max.vehicle speed(km/h) | 80 | |
| Box dimension(mm) | 5800X2300X1100 | |
